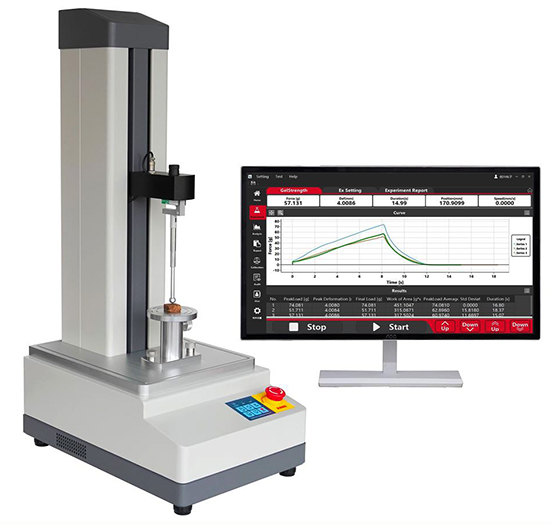

Research type Texture analyzer AACC AAOC GMP standard 20000hz frequency
Introductions
The software and hardware performance are comparable to imported texture analyzers, and can be adapted to imported probes, fixtures and accessories.
The force sensing element can be replaced quickly and safely. Through the conversion of the force sensing element, the detection range can be changed, and the sensing resolution accuracy can be changed at the same time to adapt to different sample analysis.
Equipped with a strain bridge input acquisition system with excellent performance, with a sampling rate of up to 20,000 groups/second. Realize fast, accurate and reliable physical property measurement.
The full-scale positioning resolution of 0.001mm ensures precise detection of subtle changes in the shape of the sample, reaching the research level.
Applications
1. Food categories: flour products, rice products, aquatic products, baked food, grain and oil food, grains, fruits and vegetables, gel, candy, dairy products, meat products, snack food, pet food.
2. Biopharmaceuticals: tablets, capsules, sugar coatings, films, bioadhesives, alginate gel beads, Chinese herbal medicines, proprietary Chinese medicines, ointments, stickers, popping beads test, needle penetration test, injection needle quality test, Medical tapes, inhalers, biological materials, pharmaceutical packaging materials, etc.
3. Chemicals: cosmetics, chemical materials.
4 Materials: packaging materials, films, gel films, sheets, medical materials, etc.
5 Test categories: hardness test, strength test, biomechanical test, elasticity test, tenderness test, freshness test, peel test, creep property test, relaxation property test, compression test, tensile test, full texture test, etc. .
6 Test indicators: hardness, brittleness, tenderness, adhesion, elasticity, toughness, cohesion, chewiness, ductility, resilience, firmness, tensile strength, rupture strength, shear strength, freezing strength, etc.
Specifications
| Load force range | 0~25Kg (0~250N) (optional: 1, 2, 5, 10, 25, 50, 100 Kg, etc.) |
| Load force resolution | 0.0001g |
| Displacement range | 0~410mm |
| Displacement resolution | 0.0001mm |
| Movement speed range | 0.001mm/s~60mm/s, ≤±0.1% |
| Data collection rate | Max 20000hz, Optional sampling rate: 200, 500, 2000, 5000, 10000. |
| Accessories, fixtures, probes | more than 100 optional options, and can also be customized according to user needs |
| Instrument protection function | emergency braking, upper and lower limit control, power sensor unit overload protection, detection data encryption |
| Dimensions | L480 × W330 × H 875 mm |
| Weight | 32Kg |
