Laboratory desktop Ultra-pure water machine 15 L/H Biochemistry instrument
Applications
● GC, HPLC, IC, ICP, PCR application and analysis, meteorological analysis, precision instrument analysis, amino acid analysis, analytical reagents and drug configuration, dilution; molecular biology and life sciences, animal cell and plant cell culture, tissue culture, IVF , Preparation of electrophoresis gel analysis medium;
Features
● Intelligent control—automatically shut down when water is cut off, automatically cut off water when shutting down, automatically replenish water in the water storage bucket, and automatically shut down when the water storage bucket is full
● No water alarm, water full alarm, ultra-pure water (parameters can be set at will) over-standard alarm
● Built-in 12L plastic pressure water storage bucket (including 2 pressure relief valves)—to avoid contact pollution of pure water and air, saving more experimental space
● The whole pipeline adopts quick plug-in interface, and the standard configuration of external equipment water supply port-can be equipped with an external water bucket, and a variety of specifications of water storage buckets can meet different needs
● Easy to replace the filter element—After opening the machine, the department can quickly replace the pre-filter column/purification column, which conforms to the GLP specification
● Built-in design of all filter elements—the most integrated and exquisite instrument among similar machines
● Fully automatic pressure sensor and microcomputer control work to realize automatic production of pure water
● Automatic/manual RO membrane anti-scaling flushing program, greatly prolonging the service life of RO membrane
● Built-in ultra-pure water internal circulation device, which can keep the quality of ultra-pure water at all times, ready to use
● Portable conductivity TDS test pen, dry battery design, can measure the conductivity and TDS value of tap water and RO water at any time
● Online resistivity/water temperature monitoring-real-time monitoring of deionized water/ultra-pure water effluent quality
● NSF certified pipeline-new quick-plug connector, easy to replace the filter column
● Imported quality RO membrane-the long life of RO membrane combined with high-quality water quality, high desalination rate
● Electronic-grade mixed bed resin, large-capacity deionization purification tank design, always guarantee top water quality and high water yield
● Optional dual-wavelength (185nm&254nm) UV ultraviolet lamp components-effective sterilization, reducing TOC, and enhancing the scope of application of the system
● Optional MWCO5000D UF ultrafiltration module-effectively remove endotoxin (heat source), can be used for precise cell culture and IVF
● Standard configuration terminal sterilization filter 0.22um imported PES polyethersulfone composite filter membrane to ensure absolutely sterile water quality
Specifications
| Water inlet | Tap water(TDS<250ppm,5-45℃,0.02-0.25Mpa,pH3-10) |
| UP Ultrapure water index | Resistivity | 18.25MΩ.cm@25℃ |
| Conductivity | 0.054um/cm@25℃(＜0.1um/cm) |
| heavy metal ion | <0.01ppb |
| Total Organic Carbon (TOC) | <10ppb |
| Heat source/endotoxin | N/A |
| Microbial bacteria | <0.1CFU/ml |
| Ribonuclease | N/A |
| Deoxyribonuclease | N/A |
| Particulate matter (>0.22µm) | <1/ml |
| RO index | RO water TDS (total solid solubility, ppm)≤influent TDS×1% (desalination rate ≥99%) | RO water TDS (total solid solubility, ppm)≤influent TDS×1% (desalination rate ≥99%) |
| >99% (when using new RO membrane) | >99% (when using new RO membrane) |
| >99%, when MW>200Dalton | >99%, when MW>200Dalton |
| >99% | >99% |
| System water production (25℃) | 15 liters/hour |
| Maximum water production of reverse osmosis water | 2.0 liters/min (open built-in pressure tank) |
| Inlet water pressure monitoring | 0-0.7Mpa, 0-100PSI |
| Outlet pressure monitoring | 0-1.6Mpa, 0-220PSI |
| Inlet pump pressure monitoring | 0-1.6Mpa, 0-220PSI |
| Digital water quality monitoring | Conductivity TDS test pen + LCD online resistivity, conductivity, TDS, water temperature monitoring |
| Dimensions/weight | Length×width×height: 45×45×50cm/45Kg |
| Power supply/power | 100-240V, 50-60Hz/120W |
| The standard configuration | Host (including 1 set of purification column) + 12 liters pressure bucket (built-in) + conductivity |

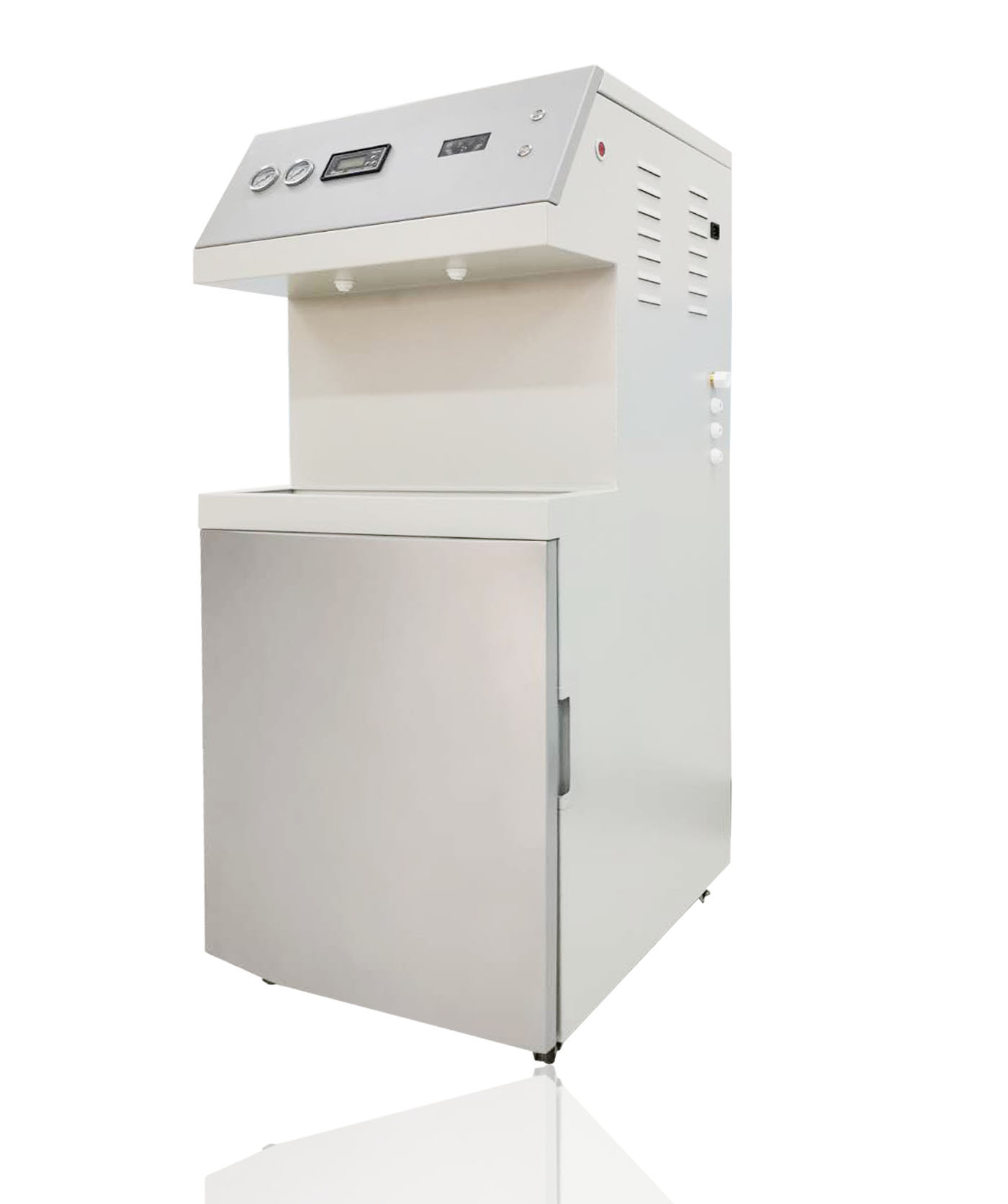

Floor type laboratory ultrapure water machine 10-200L /h.
