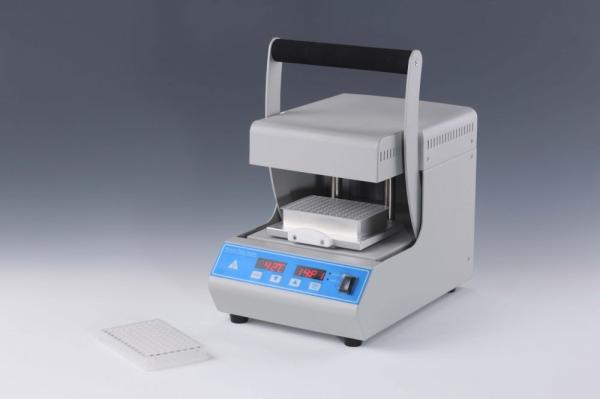

Microplate hot sealing apparatus
The introduction of Microplate hot sealing apparatus:
The MSP200 manual microplate heat sealing instrument, also known as the sealing machine or manual sealing instrument, is an affordable and economical heat sealing instrument that prevents sample loss and spatial cross contamination caused by evaporation and leakage of various microplate plates (PCR plates, deep well plates, enzyme label plates, and cell culture plates) during the detection process by sealing various specialized heat sealing membranes. Suitable for ordinary rubber sealing film, heat sealing film, puncturable heat sealing film, optical heat sealing film (quantitative PCR), and permanent heat sealing film. Replace manual sealing to ensure firm and uniform sealing of the board, avoiding cross contamination.
The manual microporous plate heat sealing instrument is compact in design, practical, and easy to install, without the need for compressed air. Fast heating, real-time display of the temperature of the sealing plate, and automatic detection of the height of the microporous plate. The sealing temperature and sealing time can be set - it is also a companion for PCR instruments and quantitative PCR instruments!
The product features of Microplate hot sealing apparatus:
1. Rapid heating (up to 170°C within 300 seconds).
2. It can be adapted to various types of microplates and heat-sealing films.
3. Precise adjustment of temperature, time and pressure to ensure the stability of the sealing plate.
4. Unique drawer-type sliding frame, easy to take out microplates.
5. Ergonomic, compact and easy to use. 6. Built-in software and hardware double over-temperature protection device, more reliable to use
The specifications of Microplate hot sealing apparatus:
| Model |
RLab-MSP200 |
| Heat seal setting temperature |
80℃～200℃ |
| Temperature control accuracy |
±1℃ |
| Sealing time |
0.5～99s 0.1s increment within 10s, 1s increment outside 10s |
| Film spacer |
30s |
| Sealing plate height |
9mm to 48mm |
| Maximum input power |
400W |
| Voltage |
AC220V/50-60HZ |
| Fuse |
250V/3A Ф5×20 |
| Dimensions (mm) |
324×216×353 |
| Weight |
11Kg |
