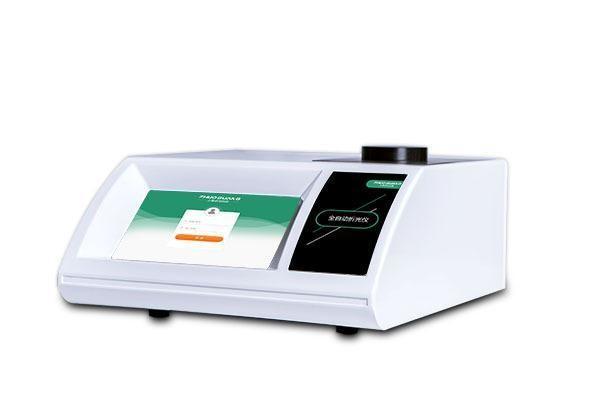

FX-GR50 Automatic refractometer
Introduction
The fully automatic refractometer is widely used in the petroleum industry, oil and fat industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also one of the commonly used equipment in schools and related scientific research units.
The FX-GR series fully automatic refractometer is equipped with high-performance linear array CCD photosensitive components, which use high-speed and high-precision signal acquisition and analysis processing technology, and is equipped with a semiconductor Peltier super temperature control system. It can efficiently and accurately measure the refractive index (nD) of various liquids such as transparent, semi transparent, dark, and viscous, as well as the mass fraction (Brix) of sugar solutions.
Standards
GB/T12143-2008,GB/T18963-2012,GB/T21730-2008,GB/T 614-2006
GT/T5527,GT/T12143,GT/T21730,GT/T18963
Features
1: Built in Peltier temperature control, improving accuracy and stability;
2: Unique dual temperature control, sapphire prism;
3: LED cold light source replaces traditional sodium lamp and halogen tungsten lamp;
4: Complies with 21CFR Part 11 audit trail, pharmacopoeia and electronic signature, and complies with FDA functions in the pharmacopoeia;
5: Support network printing and data statistical retrieval;
6: Multi level permission management, permissions can be freely configured;
7: 7-inch touch color screen, user-friendly operation interface;
8: The entire machine has passed TART and CE certification.
9: General Rule 0622 of the 2020 edition of the Chinese Pharmacopoeia
Technical specifications
| Scope |
1.30000--1.70000(nD) |
| *Test mode |
The refractive index, sugar content, honey moisture and salinity can be customized |
| Resolution |
zero point zero zero zero zero one |
| Correction point |
Multipoint fitting system |
| Sugar content range |
0-100% (Brix) |
| Sugar content accuracy |
± 0.05% (Brix) |
| Temperature control method |
Parcel temperature control |
| Temperature range |
0-100 ºC |
| Temperature control range |
5 ºC -85 ºC |
| Temperature control stability |
± 0.02 ºC |
| Display method |
7-inch touch color screen |
| Light source |
LED light source |
| Data export |
PDF, EXCL |
| Wavelength: |
589nm |
| Prism |
Sapphire grade |
| Sample Cell: |
Stainless steel |
| Detection method: |
High resolution linear array CCD |
| Output method |
USB, RS232, RJ45, SD card, USB drive |
| User Management |
Three level permission management, with freely configurable permissions |
| Audit Trail |
have |
| Network |
Wireless WIFI connection |
| Printer |
Wireless laser printing |
| Electronic signature |
have |
| Data storage |
32G |
| Power supply |
220V/50HZ |
| Data tamper proof MD5 |
Yes |
