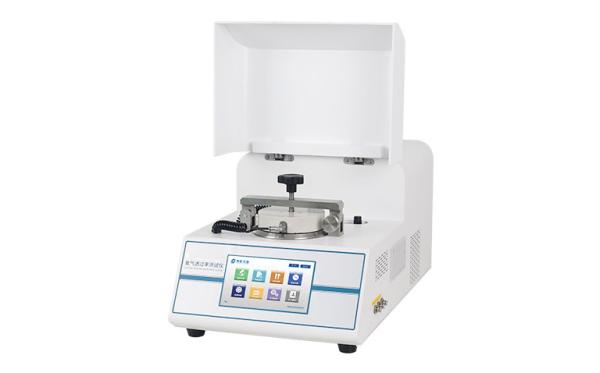

Oxygen Transmission Rate Tester Packaging Equipment ASTM F1307
Product code: BZ-OTR
Standards
ASTM D3985, ASTM F1307, ASTM F1927,GB/T 19789,GB/T 31354,DIN 53380-3,JIS K7126-2-B,YBB 00082003-2015
The oxygen transmissivity tester is designed and manufactured according to ASTM D3985 standard using coulomb oxygen sensor and ISOBARIC test principle. It is applicable to high and medium oxygen and air barrier materials to test their oxygen transmissivity.
Features
High precision coulomb oxygen sensor improves the accuracy and stability of the test
• 7-inch high-definition LCD touch screen, more intuitive content and easier operation
• Independent single chamber test, one sample can be tested at a time
• Wide range, high precision, automatic temperature control to meet the test under various test conditions
• Test results support multi format storage and data output, including experimental report Excel and cloud sharing
• The product complies with the GMP user's multi-level permissions
• Single and group statistical analysis of test results can be conducted
• It has ISP online control and upgrade functions, and can change the test function remotely as required
• Special computer communication software, which can perform real-time display of test, data analysis and processing, and data storage
Test method
The processed sample is clamped on the test chamber. Oxygen or air flows on one side of the film, and high-purity nitrogen flows on the other side of the film. Oxygen molecules diffuse through the film to high-purity nitrogen on the other side, which is carried to the sensor by flowing nitrogen. After the oxygen concentration measured by the sensor is analyzed, oxygen transmission test data is issued after reaching osmotic balance.
Test materials
| Basic types |
| Thin film |
Various plastic film, paper plastic composite film, coextrusion film, aluminized film, aluminum foil composite film, glass fiber aluminum foil paper composite film and other film materials |
| Sheets |
PP sheet, PVC sheet, PVDC sheet, metal foil, rubber sheet, silicon sheet and other sheet materials |
| Extended types |
| Containers |
PE bottles, PET bottles, glass bottles, plastic barrels, boxes, packaging bags, capsules, packaging pieces and other containers or packaging pieces |
Specifications
Thin film
| Test scope |
cc/(m2·day) (standard 50cm2) |
0.1 ~ 200 |
| Resolving power |
cc/(m2·day) |
0.1 |
| Temperature range |
℃ |
20 ~ 50 (optional) |
| Temperature resolution |
℃ |
0.1 |
| Extended functions |
GMP computer system |
Optional |
Container (optional)
| Test scope |
cc/(pkg·day) |
0.001 ~ 12 |
| Resolving power |
cc/(pkg·day) |
0.001 |
| Temperature range |
℃ |
RT ~ 50 (optional) |
| Temperature resolution |
℃ |
0.1 |
| Model |
BZ-OTR01 |
BZ-OTR04 |
| Test chamber |
1pc |
4 pcs |
| Sample size |
97 mm × 97 mm Other sizes can be customized |
97 mm × 97 mm others can be customized made |
| Sample thickness |
≤ 3 mm |
≤ 3 mm |
| Standard test area |
50 cm2 |
50 cm2 |
| Test gas |
99.5% oxygen (provided by the user) |
99.5% oxygen(air source self-contained by user) |
| carrier gas |
99.999% high-purity nitrogen |
99.999% high purity n |
| Test pressure |
7.2 PSI / 50 kPa |
7.2 PSI / 50 kPa |
| Interface size |
1/8 inch metal pipe |
1/8 Inch metal tube |
| Overall dimensions |
400 mm (L) × 475 mm (W) × 450 mm (H) |
440 mm (L) × 450 mm (W) × 450 mm (H) |
| Power Supply |
AC 220V 50Hz |
AC 220V 50Hz |
| Net weight |
25 kg |
42 kg |
Configurations
Standard configuration: host, micro printer, special sampler, vacuum grease
Options: professional software and communication cable, GMP computer system requirements, computer
Remarks: The air inlet of this machine is 1/8 inch metal pipe; Gas source and distilled water provided by users
