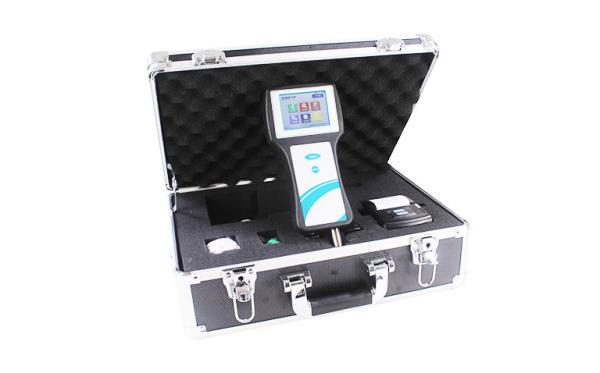

Portable Headspace Gas Analyzer Packaging Test Equipment
Model: HSGA-01
The Headspace gas analyzer features portable design, equipped with imported sensors, can accurately and conveniently determine the O2 content in sealed packaging bags, bottles, cans and other hollow packaging containers; CO2 content and N2 content can be tested with optional sensors.
Features
Automatic data logging saves labor time and paperwork
Hand-held design, one-handed operation, light and easy to carry, suitable for production site testing
Easily transfer quality control data to computer software or third-party software
Reliable quality control of modified atmosphere products
Quick-plug sampling needle protective sleeve to ensure test safety
Easy to operate-minimal training requirements
The built-in data storage can reach up to 1500, meeting the needs of large data storage
Color display with touch function
Can be used for oxygen or oxygen/carbon dioxide combined measurement
The sampling volume is at least 3 ml
Data transfer via Ethernet and USB
Optional wireless micro printer
Specifications
| Measured gas type |
O2 (standard); |
CO2 (optional) |
| Test principle |
Electrochemistry; |
infrared absorption |
| Sensor life |
About two years (in the air); |
>15 years |
| Sensor specifications |
0 ~ 100% |
0 ~ 100% |
| Resolution |
0.01 % |
0.01% |
| Measurement accuracy |
±0.2% |
±(0.03%＋indicating value 5%) |
| Sample size |
＜3ml (standard mode) |
|
| Dimensions |
230 mm (L) × 120 mm(W) × 82 mm(H) |
| Power supply |
220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net weight |
1 kg |
