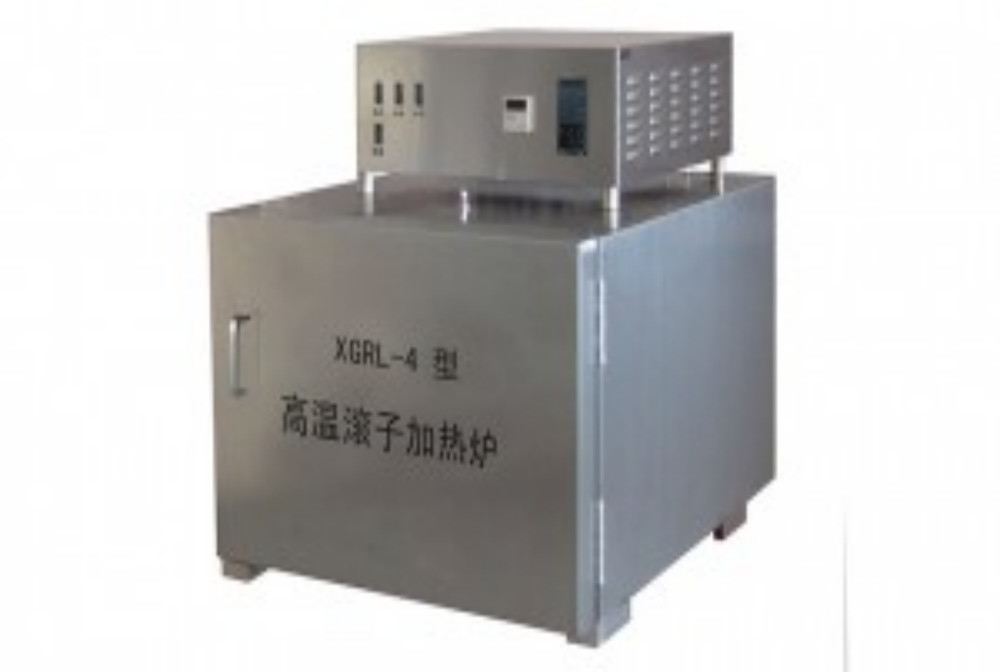

XGRL High Temperature Roller Oven Drilling Fluids Instruments
Description
This high temperature roller oven is manufactured as per the API standards, PID temperature control, direct parameters setting, digital display, sample can be tested under either in rolling heating and static heating.
It features highly automatic, easy operation, high accuracy. It’s kind of common drilling fluids testing instrument.
Typical applications
- Study the Cation Exchange reaction in the newly prepared drilling fluids
- Test the drilling fluids additive stability (such as thinners and organic glue)
- As drying oven
- As aging oven
- As the ball mill
- Mixing chemical solution
- Mix liquids or solid material
- Drainage gas in liquid
Features
Intelligent control, digital display, deviation indication
Stainless steel made, corrosion resistant, temperature controller available with both ℃ and ℉
Foreign Imported International brand frequency machine equipped with foreign Imported International brand precision inverter
Stable performance, less noise, high accuracy, wide work range
High automation degree, easy operation, durable in tooling, easy repair and maintenance
Technical specifications
| Power supply | AC220V±5%, 50/60Hz |
| Heating bar power | 1.5KW |
| XGRL-4 | Max 240℃(464℉) |
| XGRL-4A | Max 300℃(572℉) |
| Temperature accuracy | ±2℃ |
| Motor power | 370W |
| Roller rotation speed | 50r/min |
| Sample flow rate | 0.16 m/s |

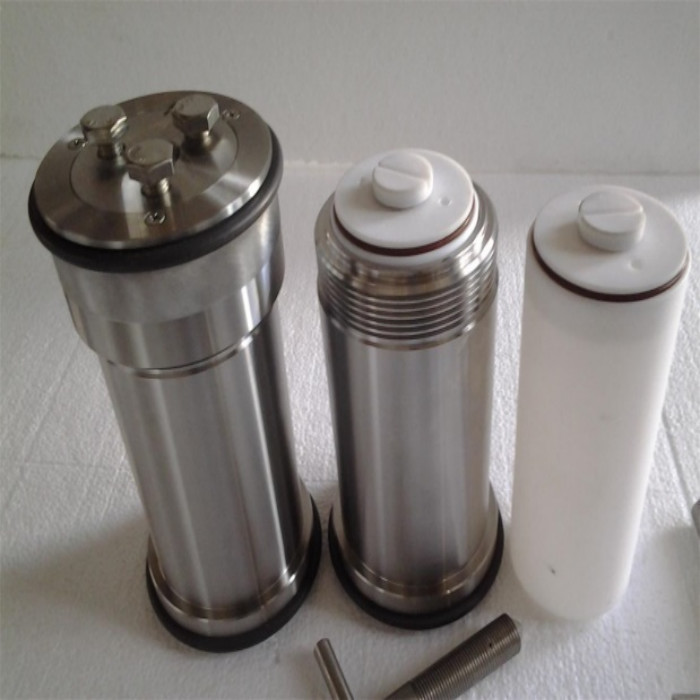

| Aging cell included | 8nos, 500ml |
| Working space | 555×355×630mm |
| Overall dimension | 700×820×685mm |
Other models available
| Model | XGRL-4A | XGRL-5 | XGRL-7 |
| Roller number | 5 | 5 | 7 |
| Working chamber size | 560*630*360mm | 570*390*360mm | |
| Aging cell number | 8 | 4 | 6 |
| Temperature range | RT-300 degree C |
| Heating power | 1000W*2 | 1000W | 1000W |
| Power supply | AC 220v,50 Hz |
